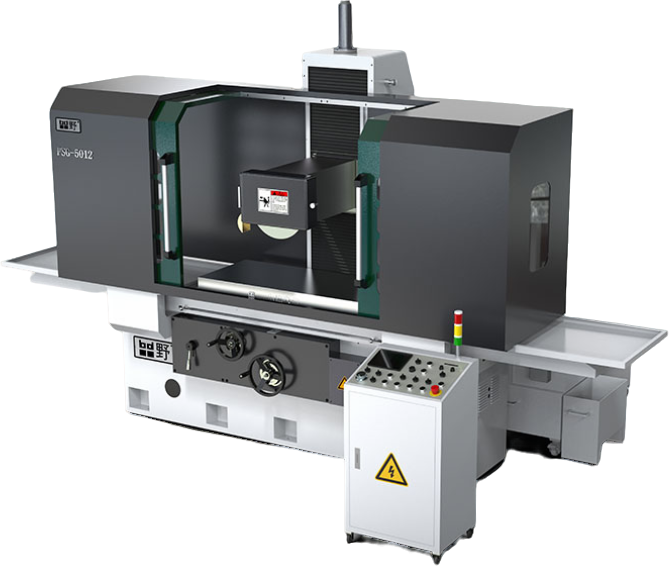

PSG-450M
| Hangzhou Pyeah Precision Machinery Co., Ltd.-PSG-450M/450AS/450AS2 Machine tool Parameter table | ||||
| Item | Specification | Unit | PSG-450M | |
| Capacity | Longitudinal table travel | mm | 400 x 150 | |
Cross feed table travel | mm | 460 | ||
Distance spindle center to table | mm | 180 | ||
Distance spindle center to table | mm | 400 | ||
Table load including magnetic chuck | KG | 50 | ||
Table & Cross feed | T-slot | mm×N | 17x1 | |
Longitudinal table speed | m/min | / | ||
Slide way | / | (1V1falt) | ||
Cross feed on hand wheel | 1 gra. | mm | 0.02 | |
1rev. | 5 | |||
Auto cross feed per stroke | mm | / | ||
Power cross feed | 50HZ | mm | / | |
| 60HZ | / | |||
| A few axis nc | unit | / | ||
Grinding wheel | Wheel dimension | mm | φ180×6~20×φ31.75 | |
Spindle speed | 50HZ | R.P.M | 2850 | |
| 60HZ | 3600 | |||
Vertical movement | Vertical on handwheel | 1 gra. | mm | 0.005 |
| 1rev. | 1 | |||
Auto down feed elevation | mm | / | ||
Power head increment | mm/min | / | ||
Motor | Spindle motor | HXP | 1.5 | |
Power elevation motor | HXP | / | ||
Hydraulic motor | HXP | / | ||
Cross feed motor | HXP | / | ||
Dust collection motor | / | 0.37 | ||
Dust collection motor | W | 0.4 | ||
Dimension & Weight | Machine height | mm | 2000 | |
Floor space | mm | 1800×1350 | ||
Net weight | KG | 910 | ||
Gross weight | KG | 1000 | ||
